Product Name:

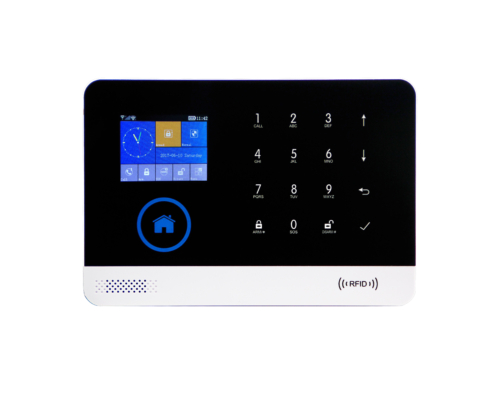

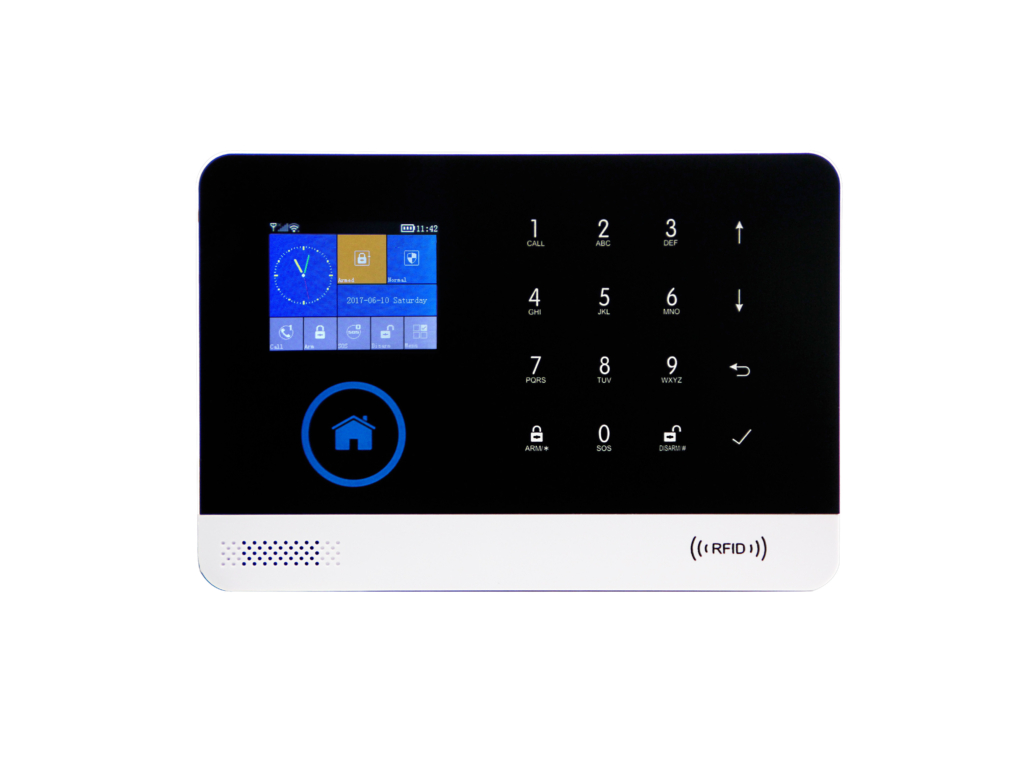

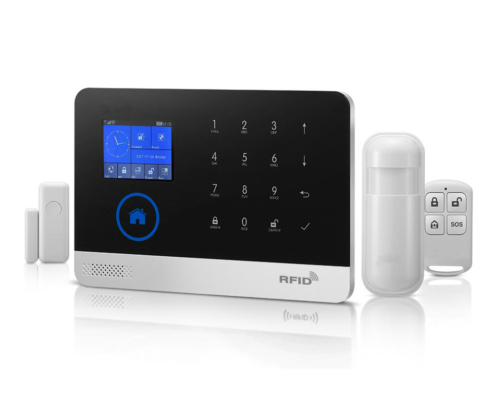

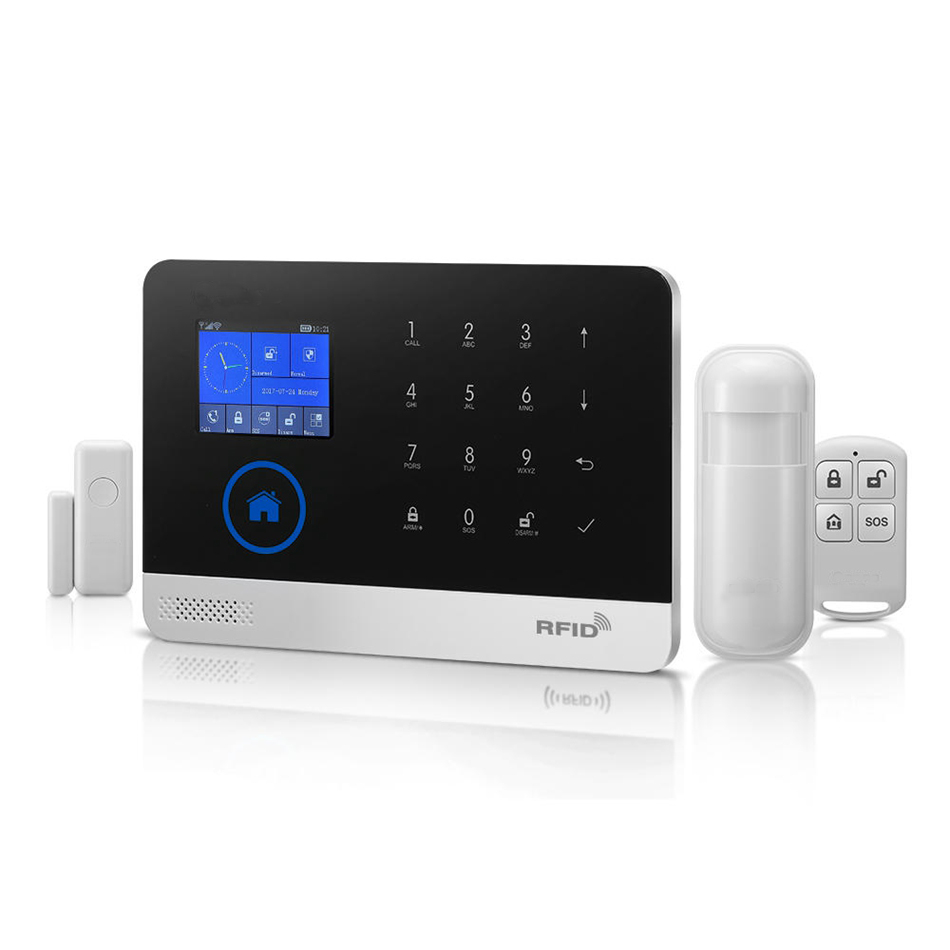

WiFi & GSM RFID Home Alarm System

Product Model:    P3

Technical Parameters:

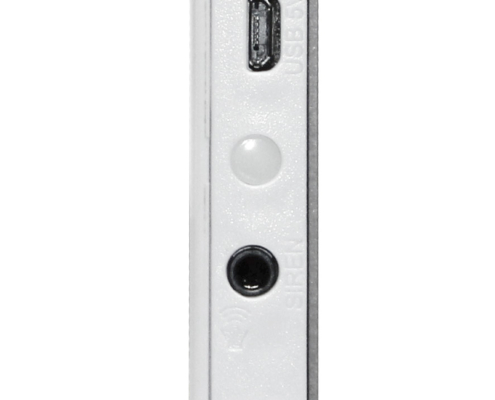

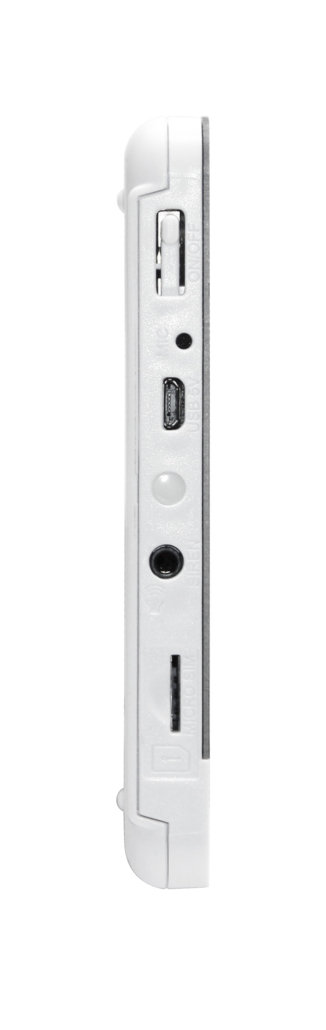

  • Power input: DC 5V (Micro USB jack)
  • Working current: ≤120mA
  • Standby current: ≤80uA
  • Siren output: ≤500mA
  • Wireless frequency: 433MHz
  • Wireless code: EV1527
  • GSM frequency: 850/900/1800/1900Mhz
  • WiFi standard: IEEE802.11/b/g/n wireless standard
  • Backup battery: 3.7V/ 500mAh Li-battery
  • Working temperature: 0-55C
  • Product size: 185x125x14.7mm
Product Main Features
  • 2.4 inch TFT screen,concise user interface and menu design.
  • Built-in powerful CPU master based on 32-bit Cortex-M3 core.

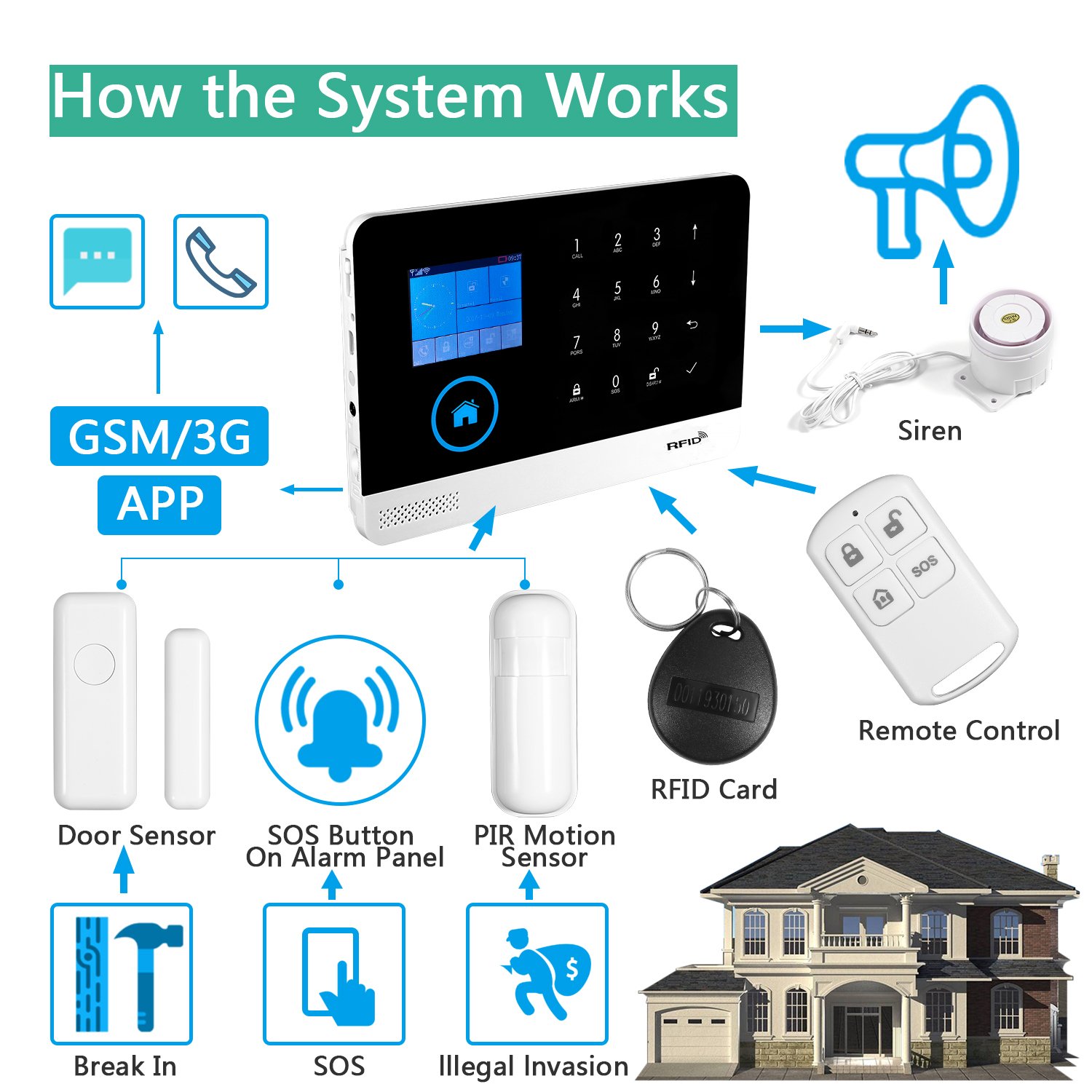

  • WiFi/GSM/3G/GPRS network, support APP push/SMS/Voice such different alarm channels.
  • Support SMS Arm/Disarm and Voice Arm/Disarm.

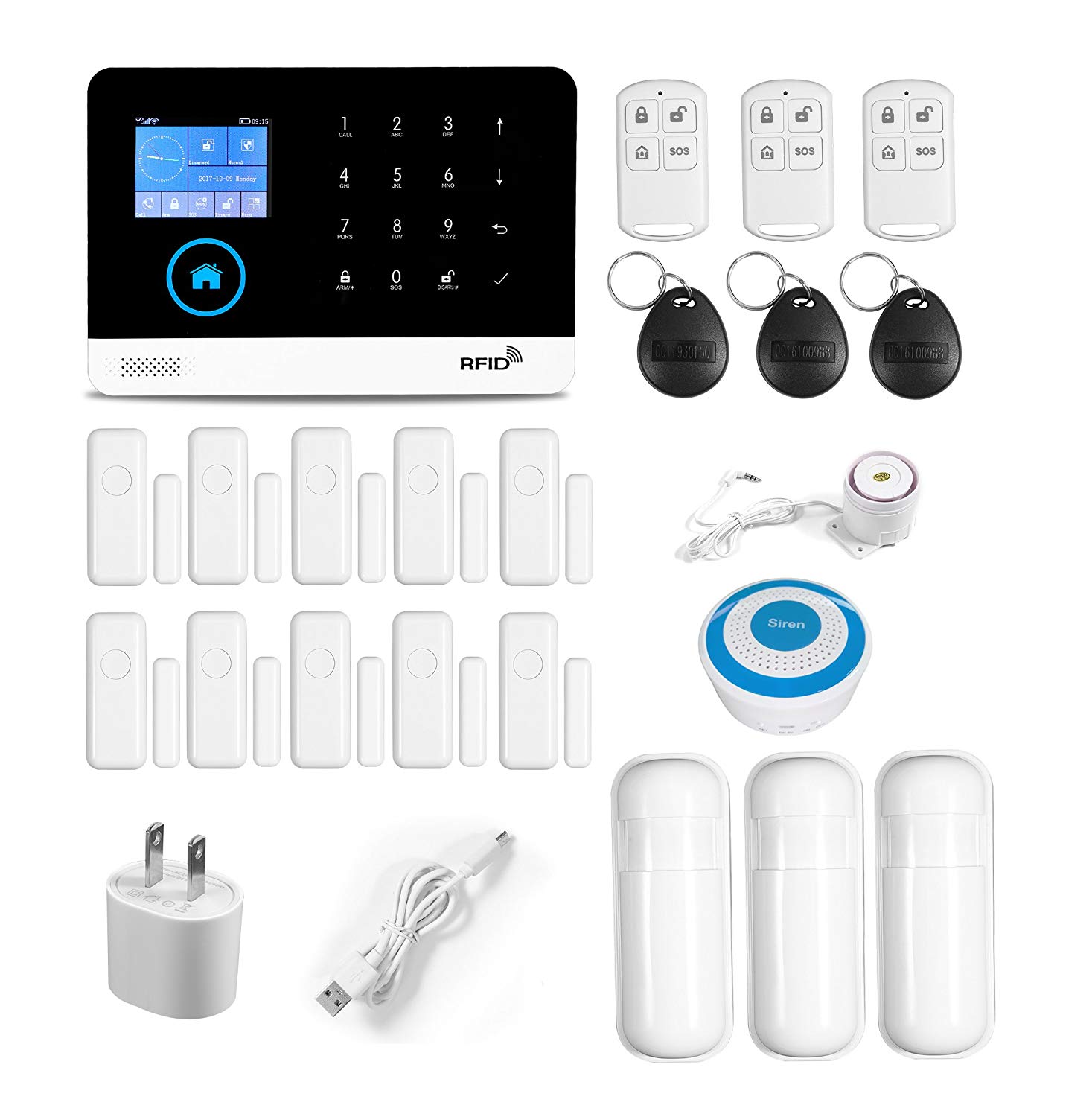

  • Support 100 learning storage location for wireless accessories.
  • Up to 5 preset alarm phone numbers.
  • Support RFID tag to Arm/Disarm.
  • Support Gate/SOS/Bedroom/Window/Balcony/Smoke/Gas/Water such different zone type.
  • Support Entry/Exit zone, indoor zone, perimeter zone, 24H zone, etc.
  • Can record 20 second voice message and alarm voice.
  • Support multi-language menu display, voice prompts and SMS text setting.
  • User-friendly APP operation and message push.
  • Online GPRS to obtain system status, automatically alarm when offline.
  • Reserved remote GPRS TCP/UDP procotol channel.
